Max Efficiency
Max. efficiency 98.4 %
European weighted efficiency 97.5 %
Input (PV)
Recommended max. PV power 9,000 Wp
Max. input voltage 1,100 V
Operating voltage range 160 ~ 1,000 V
Startup voltage 160 V
Rated input voltage 600 V
Max. input current per MPPT 16 A
Max. short-circuit current 22 A
Max. short-circuit current 2
Max. input number per MPP tracker 1
Input (DC Battery)
Compatible battery HUAWEI Smart String ESS
Operating voltage range 600 ~ 980 V
Max. operating current 20 A
Max. charge power 12,000 W
Max. discharge power 5,000 W
Output (On Grid)
Grid connection Three-phase
Rated output power 5,000 W
Max. apparent power 5,500 VA
Rated output voltage 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 450 V AC 3W/N+PE
Rated AC grid frequency 50 Hz/60 Hz
Max. output current
8.3 A / 380 V AC

8.0 A / 400 V AC

7.7 A / 415 V AC

Adjustable power factor 0.8 leading ... 0.8 lagging
Max. total harmonic distortion ≤ 3%
Output (Off Grid)
Compatible backup device SmartGuard-63A-T0 ( 3 phase )
Rated output power 5,000 W
Rated output voltage 220 V AC / 380 V AC, 230 V AC / 400 V AC, 240 V AC / 450 V AC 3W/N+PE
Overload output power
110 % load (3-phase): continuous; 150 % load (3-phase): 1 minute;

150 % load (Single-phase): 5 minutes; 200 % load (3-phase): 10 seconds

Automatic switchover time ≤ 20 ms (with SmartGuard-63A-T0)
Protection Feature
Unbalanced load Yes, Supports 100% three-phase unbalanced load
Input-side disconnection device Yes
Anti-islanding protection Yes
DC reverse polarity protection Yes
Insulation monitoring Yes
DC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
AC surge protection Yes, compatible with TYPE II protection class according to EN/IEC 61643-11
Residual current monitoring Yes
AC overcurrent protection Yes
AC short-circuit protection Yes
AC overvoltage protection Yes
Arc fault protection Yes
Connectors temperature monitoring Yes
Ripple receiver control Yes
Battery charging from grid Yes
General Specification
Operating temperature range –25°C to +60°C (–13°F to +140°F)
Relative operating humidity 0 % -100 % RH
Max. operating altitude 4,000 m (Derating above 2000 m)
Cooling Natural convection
Display LED Indicators; Integrated WLAN + FusionSolar APP
Communication
RS485; WLAN / Ethernet via Smart Dongle-WLAN-FE (Optional)

4G/3G/2G via Smart Dongle-4G (Optional); EMMA (Optional)

Weight (incl. mounting brackets) 21 kg
Dimensions (incl. mounting brackets) 490 mm x 460 mm x 130 mm
IP rating IP66
Nighttime power < 5.5 W
Optimizer Compatibility
DC MBUS compatible optimizer SUN2000-450W-P2, SUN2000-600W-P, MERC-500W-P, MERC-600W-P
Standards Compliance (More Available Upon Request)
Safety -
Grid connection standards -

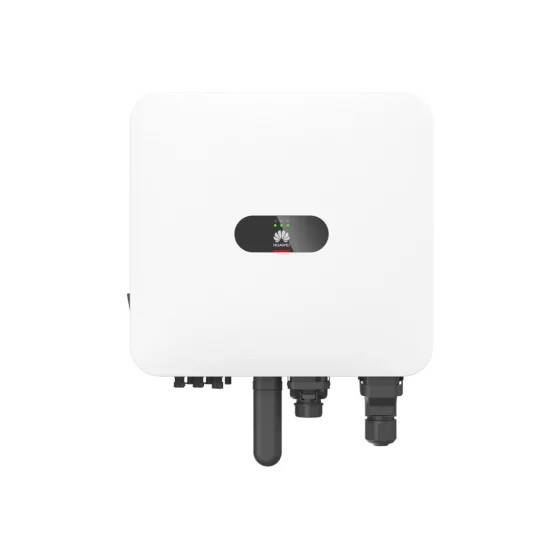

Huawei SUN2000-5K-MAP0
